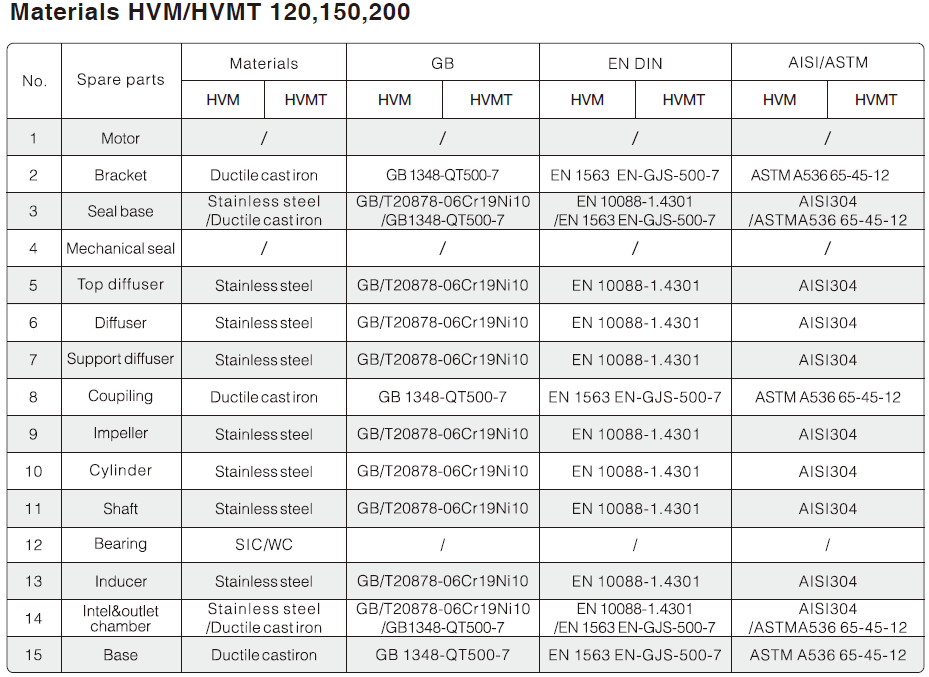

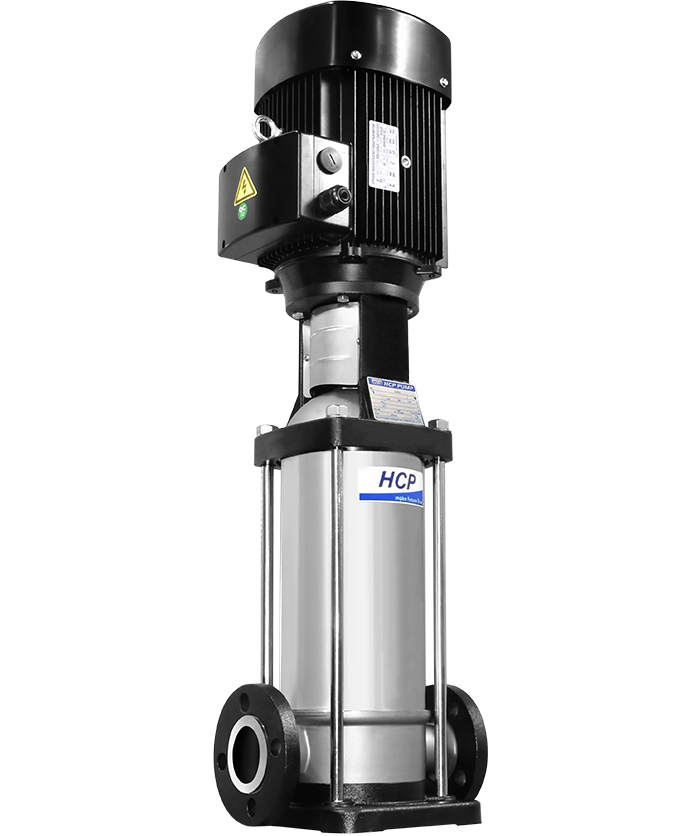

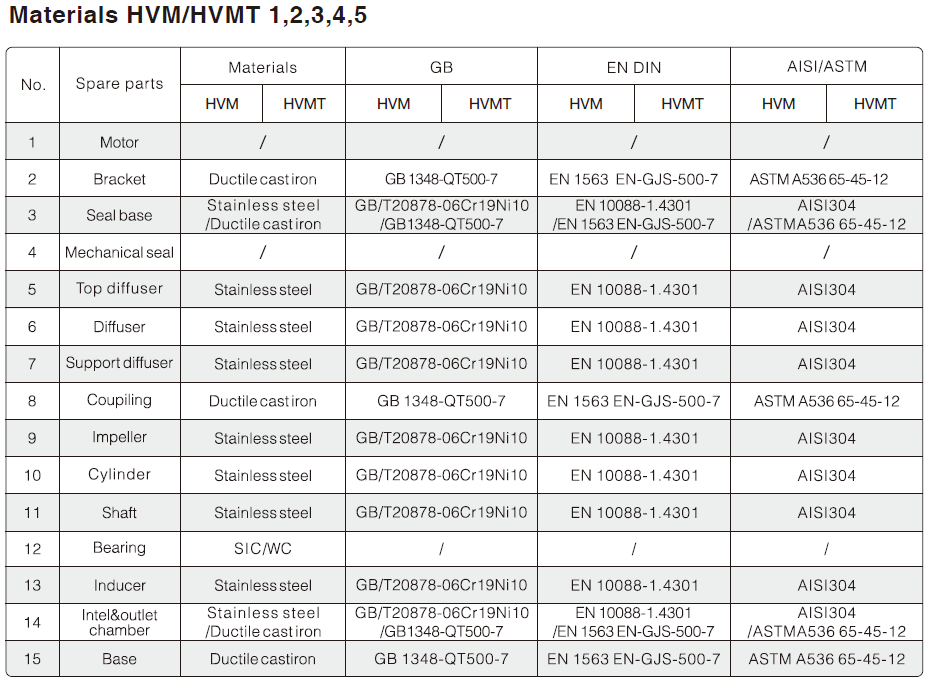

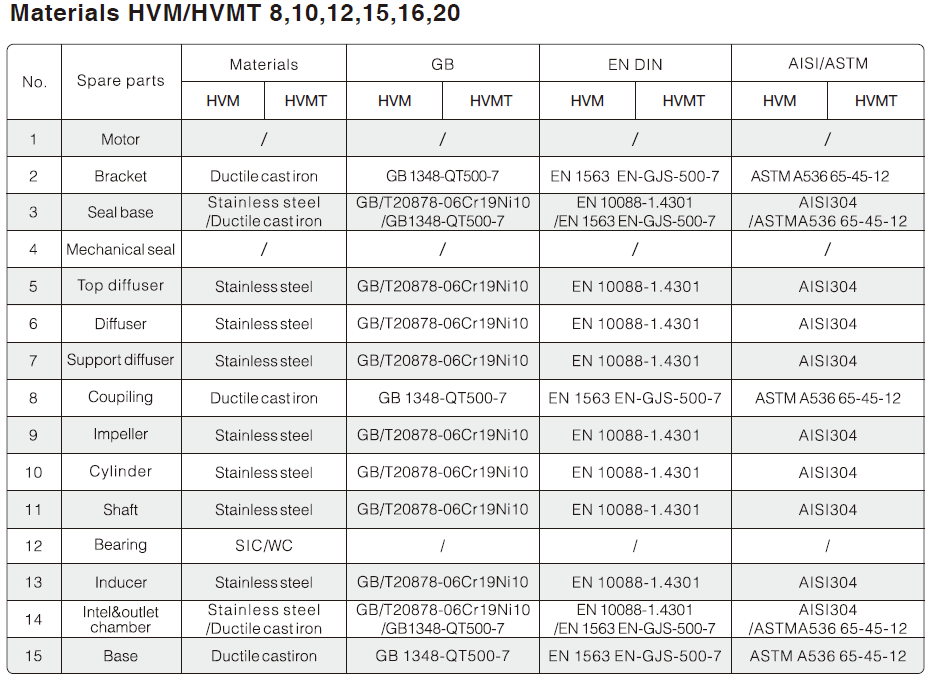

HVM, HVMT is a high-efficiency and energy-saving vertical multi-stage centrifugal pump. The centrifugal force generated by the impeller of the rotary pump drives the fluid to transfer. Its pump body and motor are composed of main shaft, impeller, diffuser, pump case and mechanical seal, and connected by coupling.
HVM, HVMT series can be used as booster pump alone or as auxiliary booster equipment in the booster system of construction and industry. Its piping structure ensures that the pump is directly installed in the same horizontal piping system with the same diameter in and out. This design makes the structure and piping of the pump more compact.
HVM, HVMT series vertical multi-stage centrifugal pump can be installed vertically or horizontally on pipeline according to different installation space. In the case of horizontal installation, the pump needs to be added with fixed module to ensure the stability of the pump during operation.
Water supply
● Water filter
● Supercharging
● Pressurization of hotels
● Industrial pressurization
Industrial boosting
● Cleaning system
● High pressure flushing system
● Firefighting system
● Car cleaning equipment
Industrial liquid transport
● Cooling air conditioning system
● Boiler feed water
● Condensing system and cooling tower
● Machine tool cooling lubrication system
Water treatment
● Ultrafiltration system
● Reverse osmosis system
● Distillation system
● Separator
● Swimming pool
Irrigation
● Regional irrigation
● Sprinkler irrigation
● Drip irrigation
● Greenhouse irrigation
